      How do I create my own QR or Barcode labels?

      In this article, learn how to use BarTender to create QR/Barcode labels that reflect the job and product type information in your Idencia system.

      Applicable Subscription Levels:

      QC MANAGER |  STARTER  |  PRO  |  PRO+  |  ENTERPRISE

      The information below may become outdated, or may not reflect the exact version of software you use. Idencia is not informed when the BarTender software is updated with new features or other functional changes.  If the instructions below do not work for you, please contact your software provider for help.

      Overview

      This article will explain how to use the BarTender label making software to create serialized barcode labels for your products.

      Topics will include:

      Setup
      Design

      THE SETUP

        1. Select the New Document Icon
          1 A
          • You have the option of creating a Blank Template or start from an Existing BarTender Document
          • In this scenario we will be selecting a Blank Template
            1 B
          • Next
        2. Printer Selection
          • The wizard automatically selects the last printer used, but as this will be for a Barcode Label, you will need to select a Laser Jet Printer.
            2
          • Next
        3. Stock Selection
          • Here is where you are going to determine the stock properties.
            • You have the option of choosing between Specify Custom Settings or Use a Predefined Stock
            • If you select the Predefined Stock, it presents you with a list of different options by category. One more well know is Avery products. From there you can choose the specific type if desired.
            • In this scenario, we will be selecting the Specify Custom Settings
              3
          • Next
        4. Page Size
          • In this scenario, we will be working with an A4 size and the orientation will be Portrait.
            • If your pages have more/less labels than shown, you will have the opportunity to change that in a later step.
              Page Type
          • Next
        5. Printed Item Shape
          • Here you can choose the shape of the individual label.
          • In this scenario, we will be using the Rounded Rectangle.
            5
          • Next
        6. Margins
          • Here you can choose the Margins for the page.
            • The margins were automatically filled in; however, you will most likely need to measure the page and enter the margins accordingly.
              6
          • Next
        7. Rows and Columns
          • Here you can choose the number of Rows and Columns for the page.
            • The number of rows and columns were already filled in; however, you might need to change them to match the page.
              7
          • Next
        8. Template Size
          • Here you can set the Template Size and the Gap/Pitch
            • The Template Size refers to the dimensions of the individual label.
            • The Gap/Pitch refers to any spaces between the labels.
          • In this scenario, we will be keeping the values that were automatically filled in; however, you might need to change them to match the page.
            8
          • Next
        9. Printing Order
          • Here you will determine the Printing Order.
            • This will correlate with the serialization of the numbers on the Barcode Label.
              • You can determine the corner in which to start and the direction it takes.
              • You can also choose to select the position when you are ready to print.
          • In this scenario, we will be keeping the order as shown in the preview.
            9
          • Next
        10. Template Background
          • Here you have the option of choosing a Background for the label.
          • In this scenario, we will not choose to have any background.
            10
          • Next
        11. Finish!
          • Final review of your document.
            11
          • Finish
        1. New Document
          • You now have the setup for your label and can begin designing!
            12

      THE DESIGN

      1. Creating the Barcode
        • Select the Barcode icon in the toolbar.
          13 A
          • Here you can see some of the recently used ones, but you will select the More Barcodes
        • This shows an entire list of Barcode Types for several purposes.
          14 A
          • In this scenario, we will be choosing the standard Code 128
            • Click Select
        • Click anywhere on the design area to add the barcode
          15 A

      2. Editing the Barcode
        • Right click on the Barcode
        • Select Properties
          16 A

        • Here is where you can make changes to your Barcode
          • Barcode 1
            18 A
            • You can change the Object Name and make any comments if desired
          • Symbology and Size
            19 A
            • You can change the Barcode Type, change the dimensions as well as choose a color
          • Human Readable
            20 A
            • This relates to the text display with the barcode Ex: 12345678
            • You can change the visibility, placement and alignment
          • Font
            21 A
            • You can change the Font Type, Style and Size
              • Please note that some types are not compatible with all printers
          • Text Format
            22 A
            • You can change the Format of the text; single line or paragraph and their relating options
          • Border
            23 C
            • You can add and format a Border for your barcode
          • Position
            24 A
            • You can change the Position of the barcode on the label
              • The Position can also be moved manually when selected
          • Data Sources
            25 A
            • This explains how to connect an Excel Sheet or other outside source to import your Human Readable/Serial Number
          • Barcode: Data Source
            26 A
            • You can change the Text of the barcode; here it has been changed to: TestBarcode2021
          • Barcode: Data Type
            27 A
            • You can change the Type of barcode; text, date, number, currency, etc.
          • Barcode: Transforms
            28 A
            • You can apply certain Requirements to your barcode;  filters, truncation, serialization, etc.

            29 A
            • Example: Incrementation of 1 for Alphabetic and/or Numeric

      2. Adding a Textbox

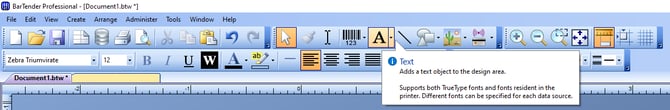

        • Select the Text icon in the Toolbar
          30 A

        • You can choose any of the options listed; we are going to choose a Single Line Textbox
          31 A
        • Click anywhere on the design area to add the Textbox
          32 A

        • Edit the text to change it
          32 B

      3. Adding a Picture
        • Select the Picture icon in the Toolbar
          33 A

        • Select where to insert the picture from; we will be choosing 'Insert from File...'34 A

        • Click anywhere on the design area to add the Picture
          35 A

        • You can change the size and location by manually moving the picture within the design area
          36 A
        • Done!

      All that's left is to start printing
