      How do I set up and pair my ATID AT288 Scanner?

      In this article, learn how to pair and configure your ATID AT288 bluetooth scanner

      Overview

      This guide will walk you through pairing your AT288 with your Android device and then to the Idencia Mobile app.

      Things to Know


      Getting Started
      Configure your Scanner
      Keyboard Toogle
      Supplementary Documentation


      Getting Started

      It always a good Idea to start these pairing steps with a clean slate

      1. Unpair any other scanners from the mobile device
      2. Open the device Settings
      3. Find and select Applications or App Manager
      4. Find and select the Idencia app.
      5. Find an tap the Clear Data button (this option may be under Storage or Data Storage)
      6. Tap Ok if a warning message appears
      7. Return to the mobile device's Home screen.
      8. Launch the Idencia app

      Configure/Reconfigure your ATID Scanners

      AT288N (v3)

      1. Verify you're in HID mode (SPP and BLE lights should both be off).  If not, long-press the left arrow key (3.5 seconds) until you are in HID mode. NOTE: Some users report this often takes more than one try.
      2. Verify you're in OneTag mode (OneTag light will be lit).  If not, short press the 'C' button.
      3. Verify you're in BlueTooth mode (the BT light should be flashing). If not, short press the BT button.
      4. Open your device settings and turn on Bluetooth.
      5. Connect to your ATID AT288 scanner.
      6. Open the Idencia Beta app and start scanning with the “scan tag” option.

      AT288

      ATID Guide

      See below for the excerpt from their guide explaining this:

      • RF Power Control Left Key
      • There are two functions for RF Power Control Left Key.
      • Short Press RF power can be adjusted. 1dBm is decreased per press. The minimum RF power that can be set is 11dBm.
      • Long Press Remote Protocol can be selected by long press.
      • If COM PORT setting is USB, USB protocols are selected.
      • If COM PORT setting is BT, BT protocols are selected. It will take 3.5 seconds to apply the mode changes.
      • For USB protocol, USB_VCP → USB HID → USB_VCP
      • BT Protocol, BT_SPP →  BT_HID → BT_BLE  → BT_SPP

      Download the full guide:

      https://atid1.com/wp-content/uploads/2018/02/AT288N_User_Guide_ENG(v0.3).p

      Troubleshooting:

      If your ATID scanner is putting a prefix at the beginning of the serial numbers each time you scan, you will need to take extra steps for a one time setup.

      1. Download AT288N Demo app from Play Store, (this is only available to Android devices and not iOS). The AT288 scanner therefore must be configured on an android tablet before it will work on either Android or iOS with the expected behaviors.
        1. Here is a link: AT288N Demo - Apps on Google Play
      1. Turn the scanner to bluetooth mode by pressing the USB key on top right & enable SPP mode by long pressing left arrow key. (it will indicate BT and SPP LEDs).
      2. Open AT288N Demo app and scan for new scanner.
      3. AT288 Demo App_Connect A Device
        1. Select device to connect
          AT288 Demo App_Select a Device
        2. Click on option

          AT288 Demo App_Options

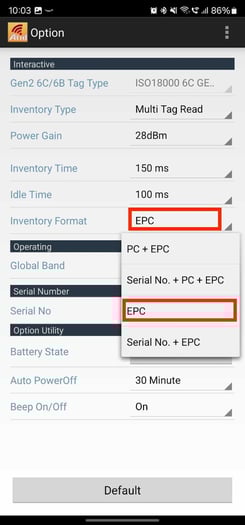

        3. In Inventory format select EPC

          AT288 Demo App_Inventory
      4. Now the scanner is ready to use  🎉 .
      5. Turn the scanner back to HID mode by long pressing left arrow key and connect the device with scanner.

      Your scanner should now be connected to Idencia! Happy Scanning!



      AT288 v1 & 2

      The older versions of the AT288 scanner will need to be put in HID mode


       1. The BT LED light should be on by pressing BT Key.
       2. Press the Power Key and 6C/6B Key at the same time.
       3. The right side of HID Status LED will illuminate.

      Keyboard Toggle

      ATID Scanners:

      ATID scanners are not built for iOS and so their compatibility is a bit clunky, but still functional.

      To toggle between scan mode for ATID and the on-screen keyboard please press the connection button in the top right of the scanner button panel to change for BT to USB mode. This will disconnect your scanner. To change back to scan mode press the button again until BT is solid. This process takes around 5 seconds.

      Supplementary Documentation

      AT288N Demo App Connection Guide
